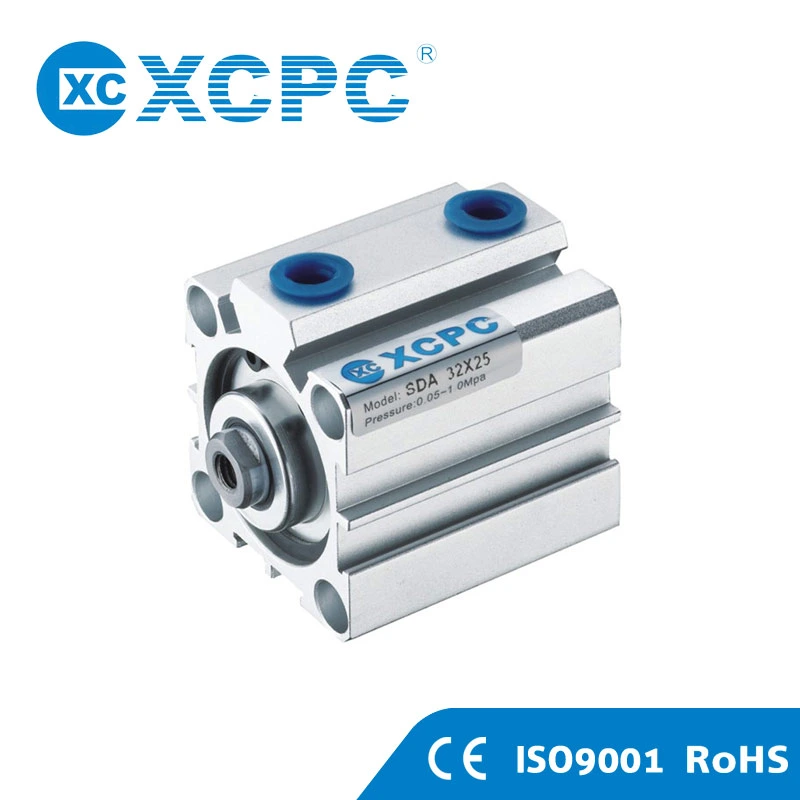

SDA Series Compact Cylinder
1. Ordering Code
2.Specification
3. Overall Dimension
1. Ordering Code
2.Specification
| Bore(mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | |
| Motion Pattern | Double Acting | ||||||||||
| Single Action Extrusion type Single Action Drawing-in Type | - | ||||||||||
| Working Medium | Air | ||||||||||
| Operating Pressure Range | Double Action | 0.1~0.9MPa | |||||||||
| Single Action | 0.2~0.9MPa | - | |||||||||
| Ensured Pressure Resistance | 1.35MPa | ||||||||||
| Operating Temperature Range | -5~70ºC | ||||||||||
| Operating Speed Range | Double Action | 30~500mm/s | 30~350mm/s | 30~250mm/s | |||||||
| Single Action | 100~500mm/s | - | |||||||||
| Buffer Type | Fixed Type Buffer | ||||||||||
| Port Size | M5X0.8 | G1/8" | G1/4" | G3/8" | |||||||
3. Overall Dimension
