2.Large rolling element bearing.
3.Pivoting angle adjustment range:0~190°.
4.With internal shock absorber.
5.Movement in direction of table's radial thrust:0.01mm or less.
6.Small size and light weight.
7.Variety of installation options for space-saving
Applicable for positioning, transportation, quantitative filling, right and left displacement, flow control, etc. capable of accuracy and speedy purpose.Specificatio
|Maximum operating pressure||With adjustment bolt||1Mpa|
|With internal shock absorber||0.6Mpa|
|Minimum operating pressure||Basic type||0.1Mpa|
|High precision type||0.2Mpa||0.1Mpa|
|Ambient and fluid temperature||0 to 60ºC|
|Cushion||Rubber buffer(standard)/With internal shock absorber(optional)|
|Angle adjustment ranger||0 ~ 190°|
|Stable swing time range||With adjustment bolt||0.2~1.0s/90°|
|With internal shock absorber||0.2~0.7s/90°|
|Pipe Size||M5 x 0.8||Rc1/8|
HOW TO ORDER
PACKAGE AND DELVIERY
Q1: Are factory or trading company?
A1:We are the leading manufacturer of pneumatic products who have 10 years experience. Welcome to visit our factory
at any time.
Q2:Can I get sample?
A2:Yes,We can offer free sample but express charge by your side. In a word, each of your needs are of most valuable
matter for us.
Q3:Do you accept OEM business?
Q4:What's the payment term?
A4: T/T,Western Union,Paypal are applicable for us.
Q5: How about the warranty?
A5: 12 months under normally used.
Q6. What's the delivery time ?
A6.. Normal model 2-5days,because we have ability to do the stock.For big order,it takes about 10-15days.
Q7: How does your factory dothe quality control?
A7: Quality is important,we always attach importance to quality control from the beginning to the end of the prodution.
Q8:Each product will be fully assembled and carefully tested before packing and shipping.
Yes, we can supply bore size 32mm to 125mm, stroke 25 to 2000mm

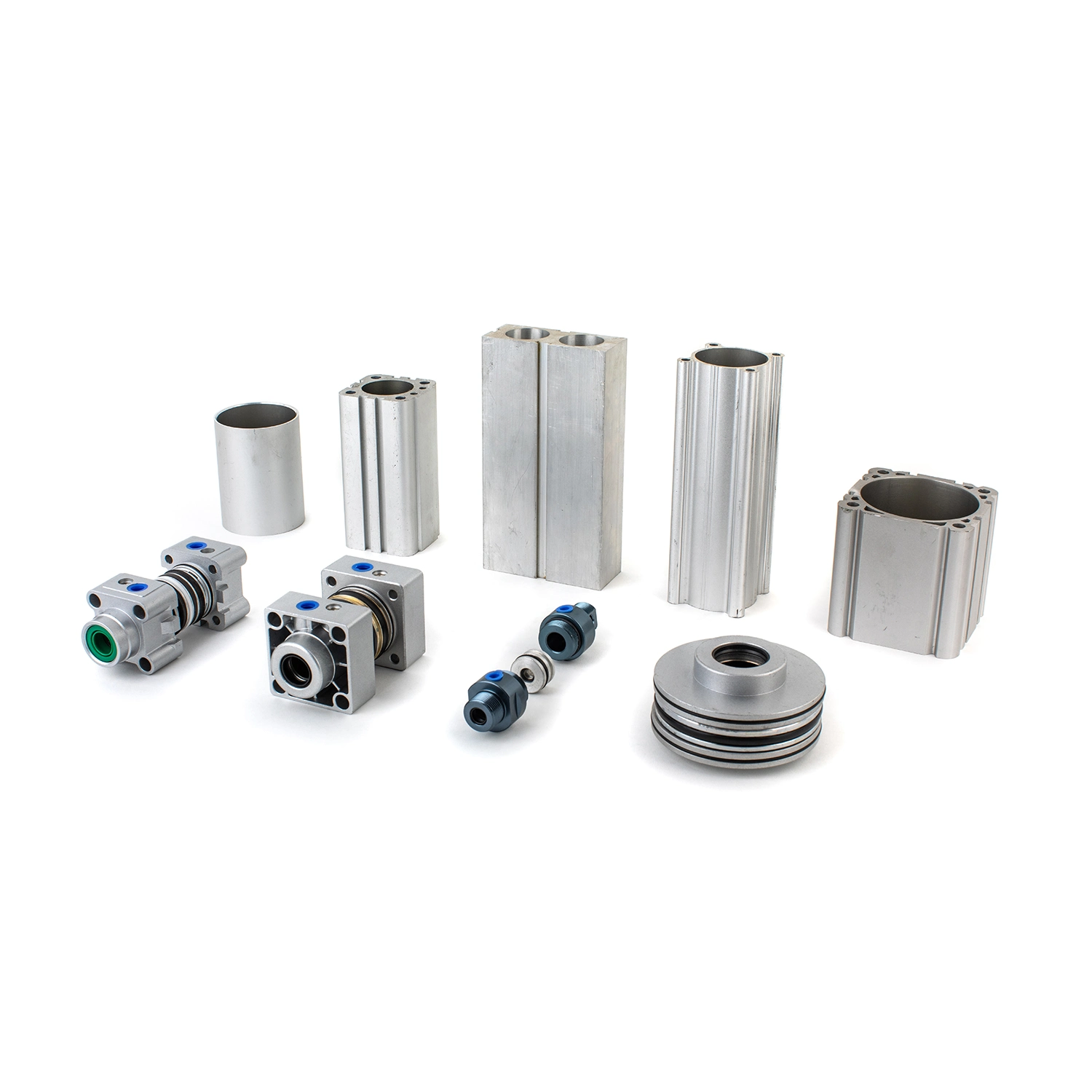

Q9:. We want to buy DNC series assembly kits ,aluminum tubes and piston rod,can you supply?
Yes, we can supply assembly kits,aluminum tubes and piston rod to you.
Q10:.How about the trade items you can accept?
We can accept trade items are EXW,FOB,CFR,CIF,DDP
Q11:Other ISO Standard Pneumatic Cylinders are also available for you:
DNG ISO15552 Standard cylinder
SI ISO6431 Standard cylinder
MA ISO6432 Mini cylinder
ADVU ISO6431 Compact/Thin cylinder

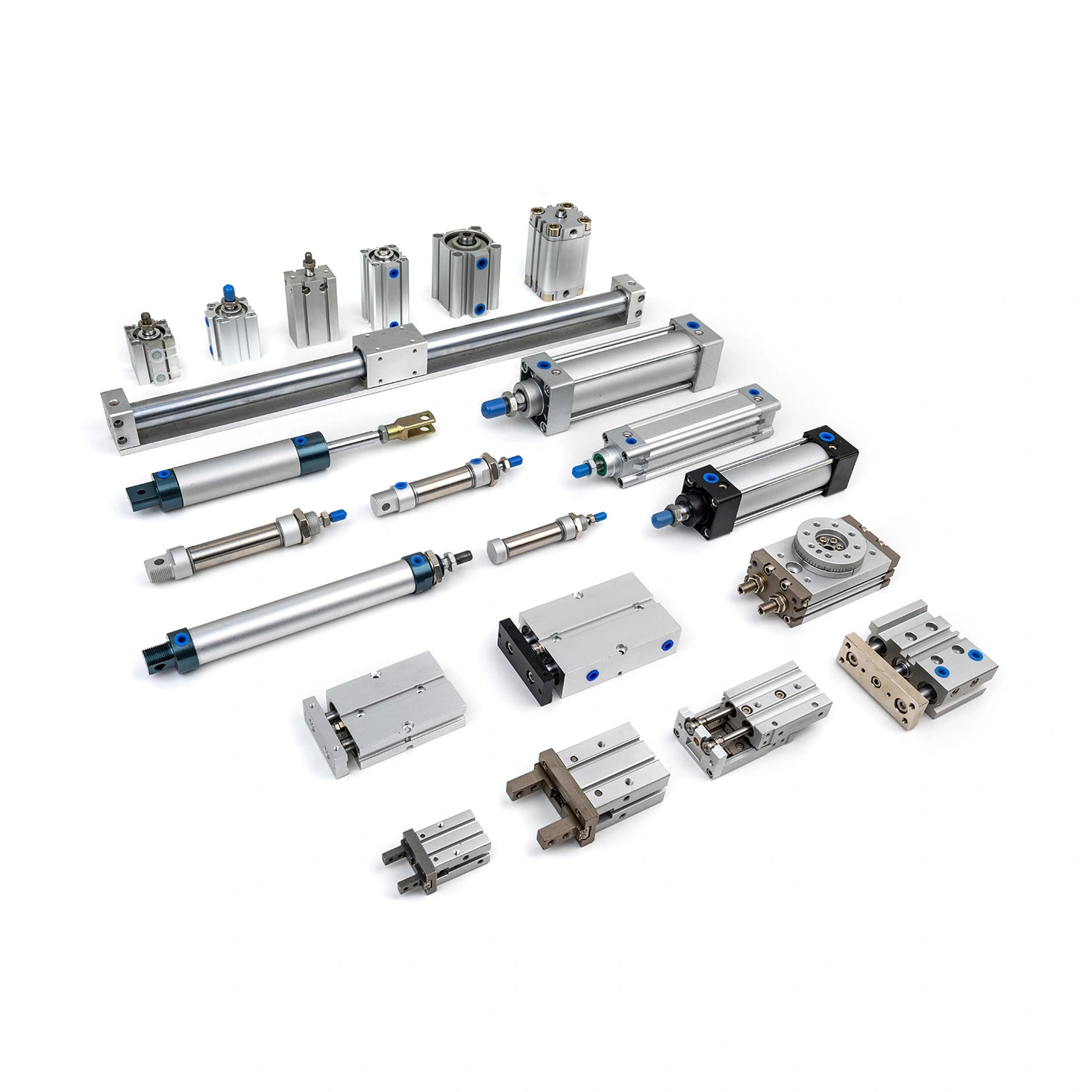

Our company also can provide other pneumatic cylinder as below,
1. Standard cylinder: SC/SU, MB, CA1
2. Compact cylinder: SDA, CQ2
3. Mini cylinder: MA, MAL, CJ2, CM2, CJP
4. Double-shaft cylinder: TN, CXS
5. Free installation cylinder: CU
6. Slide bearing cylinder: STM
7. Three-shaft cylinder: MGP
8. Stopper cylinder: RSQ
9. Clamp cylinder: XCK
10. Rotary cylinder: MSQ
11. Rodless cylinder: CY1
12. Air gripper: XHZ2/XHC2, XHL2, XHT2
More information and details, you can contact us and visit our website.
If you have the nonstandard products want to design, don't hesitate to contact us.
